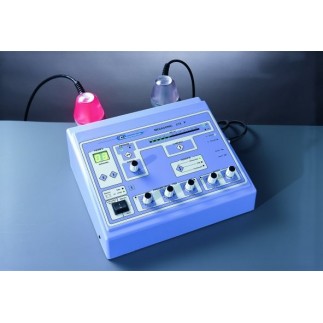

Megasonic 212P

Megasonic 212P is an easy-to-use device that combines 1 MHz ultrasounds and low-frequency currents.

Description

—2 output channels for TENS currents
—A single frequency ultrasound head of 1 MHz
—4 types of therapy:

• Continuous ultrasound regime
• Ultrasound in impulses
• TENS currents (one or two outputs)
• Combined ultrasound/TENS therapy

Technical data

General technical characteristics

—Voltage: 110-220 V
—Frequency: 50/60 Hz
—Power consumption: 30 W
—Dimensions: 9 x 25 x 28 cm
—Weight: 4 kg

Technical characteristics for TNS currents

—Two channels A and B
—Frequency from 1 to 200 Hz
—Pulse width from 30 to 280 μs
—Impulse trains from 1 to 10 s
—Intensity 60 mA per output

Standard accessories

—1 A/C cable
—4 disposable electrodes (50x100 mm)
—1 large head (6 cm²)
—2 TNS cables
—1 combined cable
—4 TNS rubber electrodes (30x50 mm)
—4 electrode covers (30x50 mm)
—4 elastic bandages (40 cm)
—A can of conductor gel (250 ml)
—User manual
—Guarantee

Optional accessories

—Small head (1.6 cm²)
—Head holder
—Carrying case
—Therapeutic ultrasound gel (5 l)
—Silicone electrode (60x80 mm)
—Silicone electrode (80x125 mm)
—Electrode cover (60x80 mm)
—Electrode cover (80x125 mm)
—Elastic bandage (75 cm)
